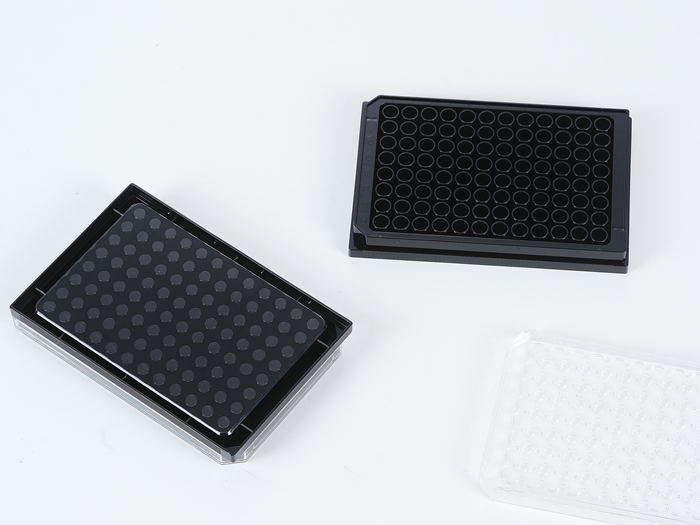

Low Base 96 Well glass bottom plate with high performance #1.5 cover glass
Low base 96 well glass bottom plate. Black polystyrene frame with high performance #1.5 cover glass (0.170±0.005mm), with lid, Individually packed. Designed for high resolution imaging such as confocal microscopy.
Coverslip :
#1.5H » view coverslip specs
Catalog # :
P96LB-1.5H , request a free sample or Get a quote
Packing :
20/case
Price :
Availability :
30 cases in stock
** Non-US users please sign in or get a quote to view the proper price for your country.**
Features:
- Suitable for long term tissue culture
- Manufactured in a class 100,000 clean room
- Frame made from virgin polystyrene
- German high quality cover glass of superior optical quality, the cover glass has a thickness of 0.170±0.005mm
- A USP class VI adhesive is used to assemble the cover glass and the plate.
- Sterilized by Gamma radiation.
- Conforms to ANSI/SBS 1-2004 standards
Suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Recommended for:
- Confocal Microscopy
- Super-Resolution Microscopy
Technical specifications
» View technical specification of different coverslips.
| Frame color | black |
|---|---|
| Coverslip | #1.5 high performance cover glass (0.170±0.005mm) |
| Length | 127.60 mm |
| Width | 85.60 mm |
| Height | 14.40 mm |
| Height with lid | 17.64 mm |
| Stacking height (with lid) | 16.70 mm |
| Bottom height | 0.26 mm (bottom of coverslip to plate bottom) |
| Bottom height tolerance | ±50μm (whole plate) |
| Lid dimension | 127 * 85 * 9.3 mm |
| Well to well center distance | 9.00 mm |
Dimension diagram (units in mm)
