Single well glass bottom plate
Single well glass bottom plate with high performance #1.5 cover glass (0.170±0.005mm). Black frame, with lid. Individually packed. Designed for high resolution imaging such as confocal microscopy.
This product is out of stock. Please contact us to find available date.
** Non-US users please sign in or get a quote to view the proper price for your country.**
Features:
- Suitable for long term tissue culture
- Manufactured in a class 100,000 clean room
- Frame made from virgin polystyrene
- German high quality cover glass of superior optical quality, glass thickness is 0.170±0.005mm
- A USP class VI adhesive is used to assemble the cover glass and the plate.
- Sterilized by Gamma radiation.
- Conforms to ANSI/SBS 1-2004 standards
Suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Recommended for:
- Confocal Microscopy
- Super-Resolution Microscopy
Technical specifications
» View technical specification of different coverslips.
| Frame color | black |
|---|---|
| Coverslip | #1.5 high performance cover glass (0.170±0.005mm) |
| Length | 127.6 mm |
| Width | 85.6 mm |
| Height | 14.33 mm |
| Height with lid | 16.8 mm |
| Stacking height (with lid) | 15.5 mm |
| Bottom height | 2.78 mm (bottom of coverslip to plate bottom) |
| Lid dimension | 127 * 85 * 10 mm |

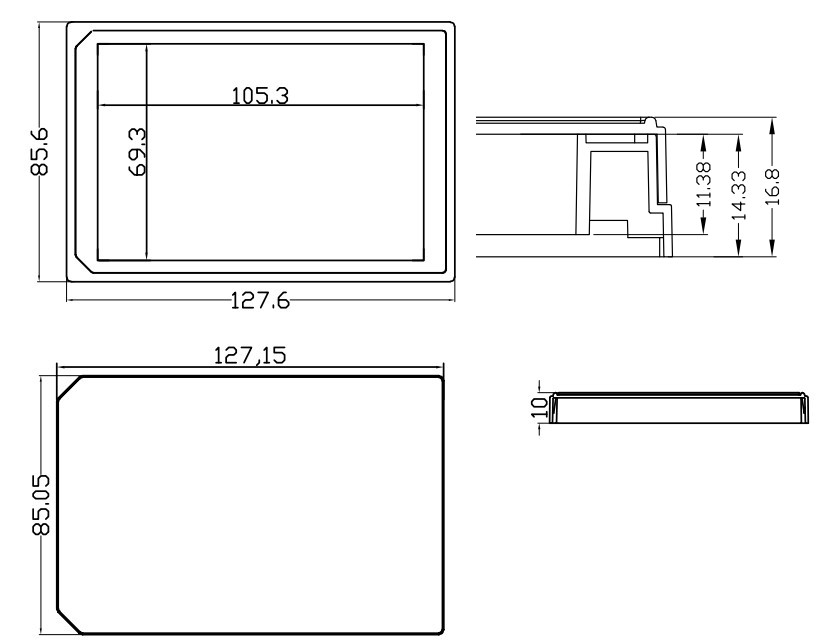

Dimension diagram (units in mm)
Open Source Publications Citing This Product
-
Microscale spatial fragmentation promotes bacterial survival under antibiotics
D Benbenisi, T Orevi, GS Hamrick, L You, N Kashtan - bioRxiv 2026
Most bacteria inhabit fragmented microscale environments rather than well-mixed systems in which antibiotic efficacy is typically defined. Here, we show that microscale …
