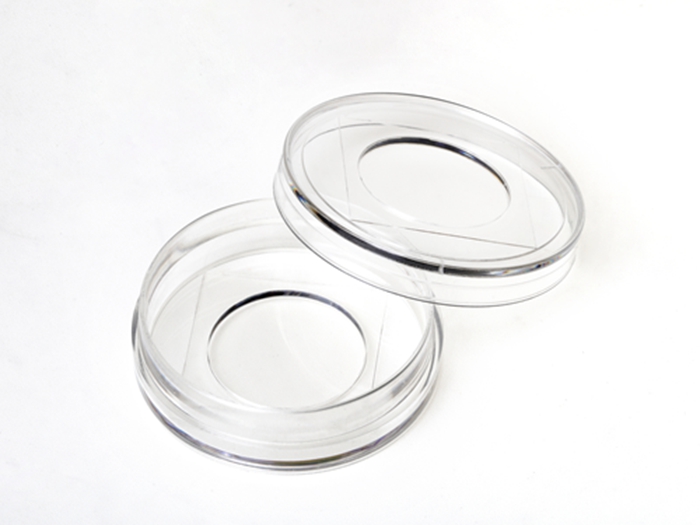

35 mm Glass top glass bottom dish with 20 mm micro-well #0 cover glass

35 mm Glass top glass bottom dish with 20 mm micro-well #0 cover glass medium picture
35 mm Glass top glass bottom dish with 20 mm micro-well #0 cover glass large picture

35 mm glass top glass bottom dish, well size 20mm (present both in bottom and lid), #0 cover glass(0.085mm-0.115mm). Designed specifically for DIC(Differential interference contrast) imaging.

Note: We found that a small percentage of microscope adapters are too small for our 35 mm glass bottom dishes. Please check carefully the dimension diagram. If your adapter is too small, you should use our 29 mm glass bottom dish instead.

Coverslip :
Catalog # :
Packing :
100/case
Price :
$181.00/case

Features:

Suitable for:

Technical specifications

» View technical specification of different coverslips.

Coverslip #0 cover glass (0.085-0.115 mm)
Temperature Range -20°C to 50°C

Dimension diagram (units in mm)

Glass top glass bottom dishes D35-20-0-TOP dimension
